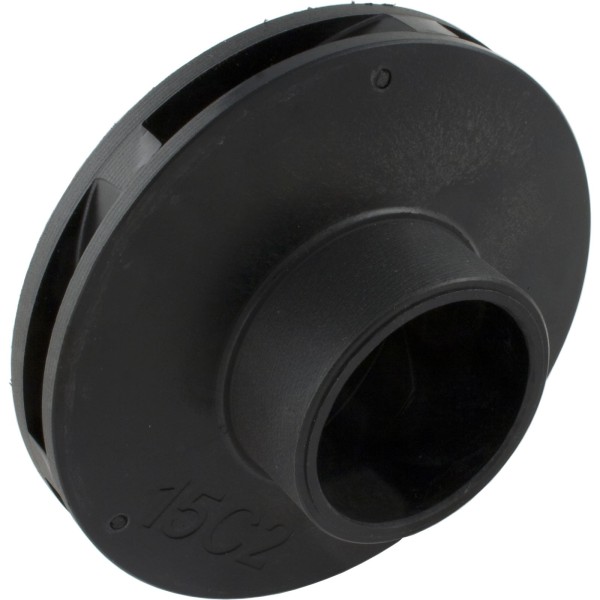

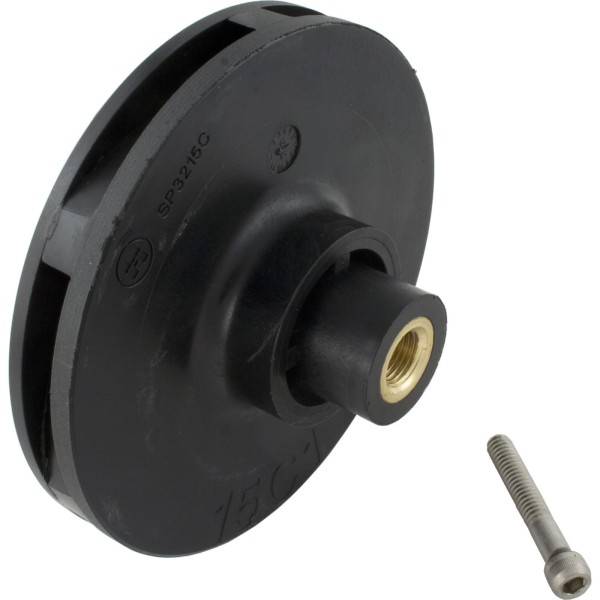

Impeller, Hayward Tristar, 1.5ohp/2.0thp, w/Screw : SPX3215C

Impeller, Hayward Tristar, 1.5ohp/2.0thp, w/Screw Hayward Pump Impeller Closed face impeller made for the TriStar SP3200/SP3200EE/SP3600 pool pump by Hayward. Rated at 1.5hp, it is used in a SP3200 and or SP3600 pump body, and must be installed on a 1.5hp (or greater) square flange motor. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-3/4" Vane Width ID: 5/16" Eye Diameter OD: 2-3/16" Eye Length: 7/8" Impeller Width OD: 11/16" Seal Seat Depth: 11/16"Shaft Length: Shaft Diameter OD: Seal Seat Diameter OD: 1-1/8"Manufacturer: HaywardPump Application: SP3200, SP3200EE, SP3600, Tristar Replaces 220984,5112-212,610377912112,HAY-101-3211,SP3215C,
