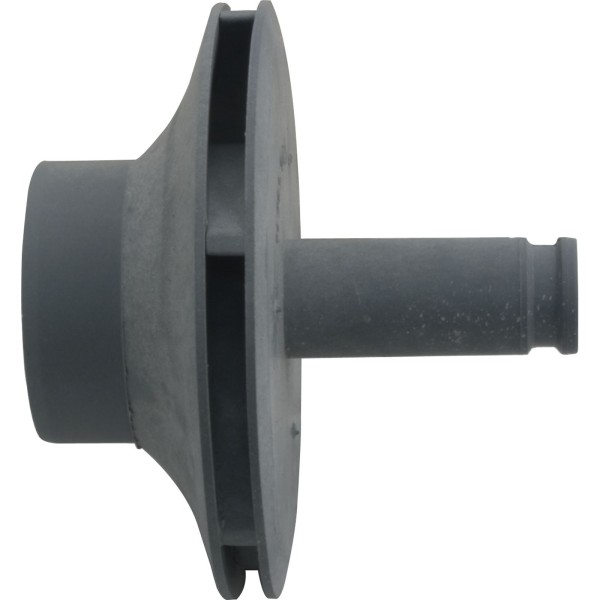

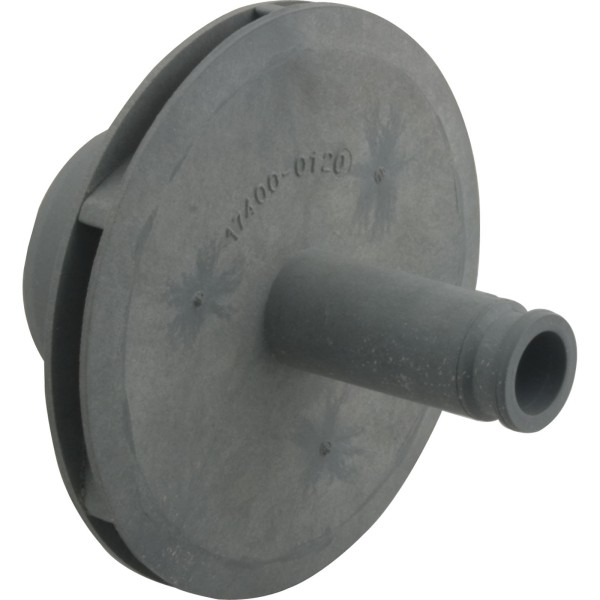

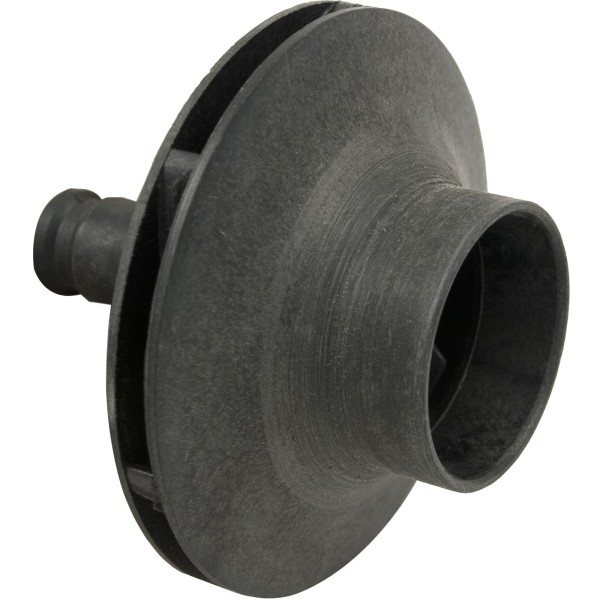

Impeller, BWG, DuraJet DJ, 1.0 Horsepower : 17400-0120

Impeller, BWG, DuraJet DJ, 1.0 Horsepower To properly match the impeller to motor on Balboa Water Groups DuraJet DJ series pumps, match impeller number to amperage on motor. ImpellerVolts/AmpsVolts/Amps 1 hp - 17400-0120115 volt - 11Amps or larger230 volt - 6 Amps or larger 1-1/2 hp - 17400-0121115 volt - 16 Amps or larger230 volt - 8 Amps or larger 2 hp - 17400-0122N/A230 volt - 8 Amps or larger 2.5 hp - 17400-0123N/A230 volt - 10 Amps or larger 3 hp - 17400-0135N/A230 volt - 12 Amps or larger 4 hp - 17400-0136N/A230 volt - 12 Amps or larger Impeller Type: Closed Face Impeller Diameter OD: 3-3/4" Vane Width ID: 1/4" Eye Diameter OD: 1-3/4" Eye Length: 5/8" Impeller Width OD: 3/8" Seal Seat Depth: Shaft Length: 1-13/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: Manufacturer: Balboa Water GroupPump Application: Dura-Jet Replaces 15-0051A,5051-42,600069,
